Description of the equipment of the production training laboratory

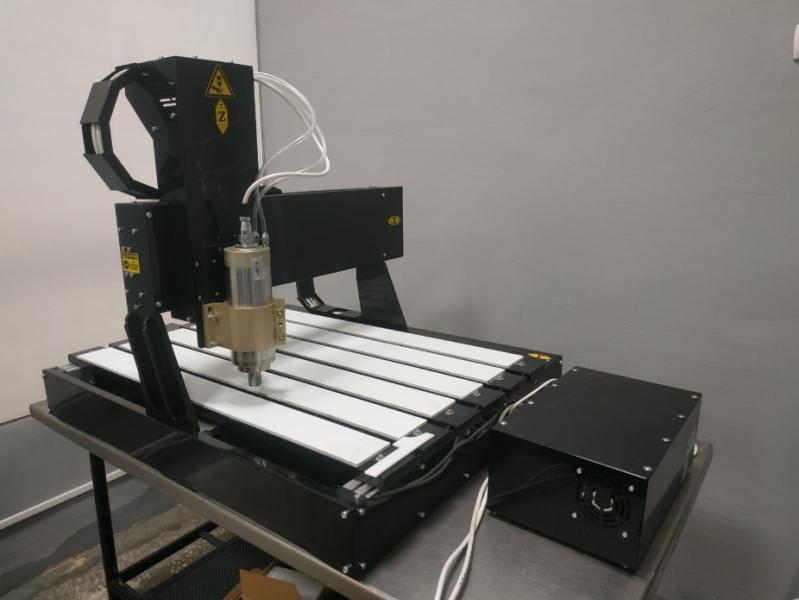

Sokol 4060 CNC milling workbench

3-coordinate CNC milling machine designed for processing 2D and 3D models, as well as bodies of rotation (with the 4th axis module installed). Rigid frame made of aluminum alloys, collectors spindle 1.5Kv.

Operations: cutting of sheet materials; sample; milling grooves; engraving; milling of 3D reliefs; drilling; milling bodies of rotation.

Working area 400x600x130mm; movement speeds up to 4000mm/min; working feed up to 3000mm/min; processing error 0.05 mm.

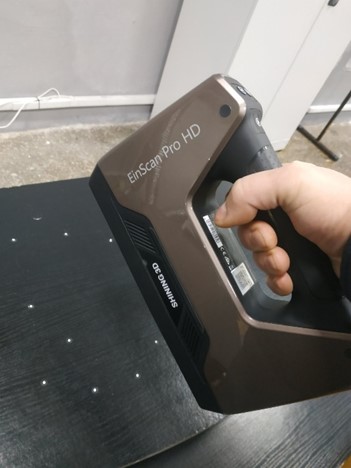

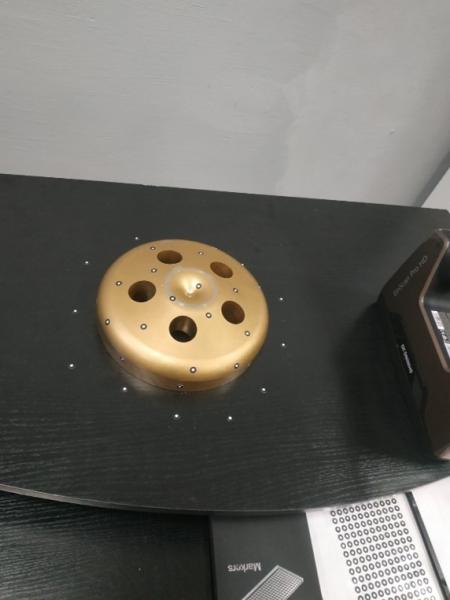

3D Scanner Equipment for 3D scanning EinScan Pro HD 3D Scanner

Multifunctional portable 3D scanner with modular design, high productivity of manual 3D scanning, high resolution, and accuracy. Versatility and powerful optimization ensure maximum efficiency and quality of 3D scanning at a professional level. It is a reliable assistant for designers and engineers who need high-quality 3D modeling. High accuracy, speed, and resolution when scanning objects of various sizes; scanning dark and black colors; USB 3.0 interface; Software: ExScan Pro and Solid Edge SHINING 3D Edition included. The scanner provides accuracy up to 0.04mm in fixed scanning mode, and in manual scanning mode using marker alignment, volumetric accuracy reaches 0.045mm + 0.3mm/m.

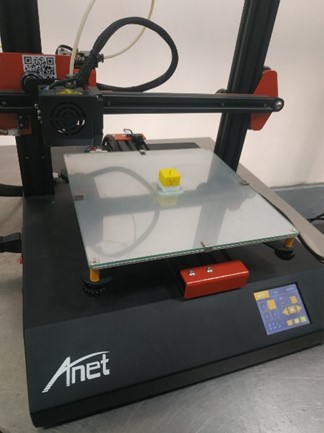

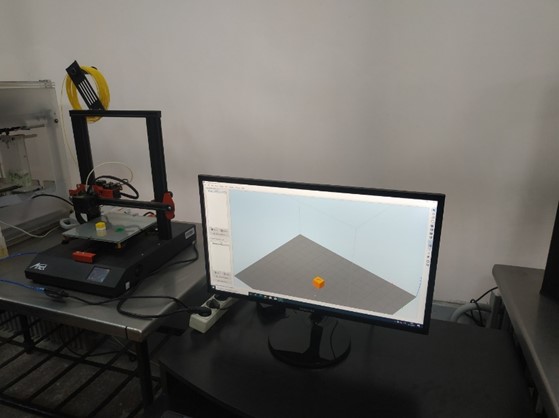

Equipment for 3D printing3D printer ANET

Printing method: deposition modeling (FDM); maximum printing speed 150mm/sec.

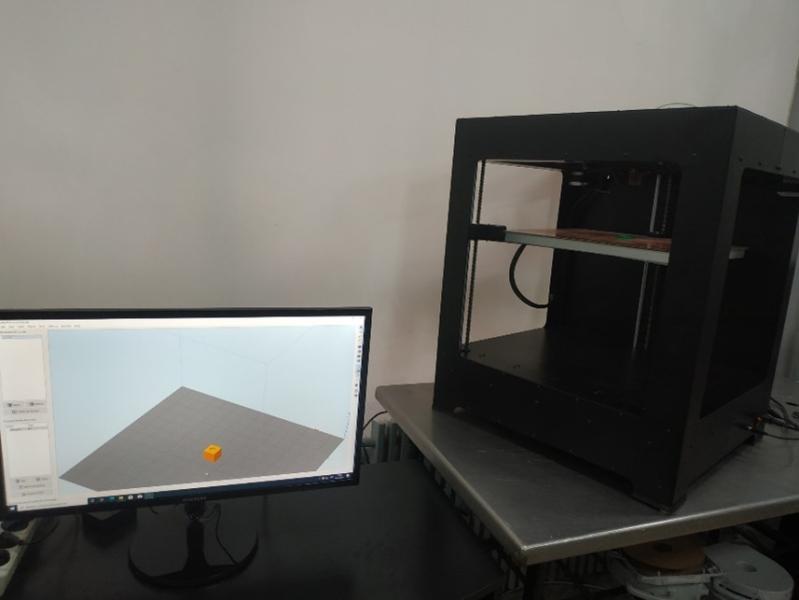

3D printing equipment Flasty GT 3D printer

GT 3D printer (version for large-size printing): - printing area 400x300x400mm; print speed: 50-200 mm/s; maximum accuracy: 50 microns (0.05 mm); filament thickness: 1.75 mm; nozzle diameter: 0.4 mm; printing materials: ABS, ABS+, PLA, HIPS, NYLON, PET, ELESTAN; software technologies: Flasty Jade; interfaces: Usb, WiFi, LCD touchscreen, remote connection via the Internet; file types: gcode; built-in camera; sensors: filament detector, thermoregulation, platform calibration; extruder temperature: 280 degrees, platform: 130 degrees. (power 700-800W); kinematics horizontal: sore XY, vertical: 1 axis; warranty obligations - 12 months.

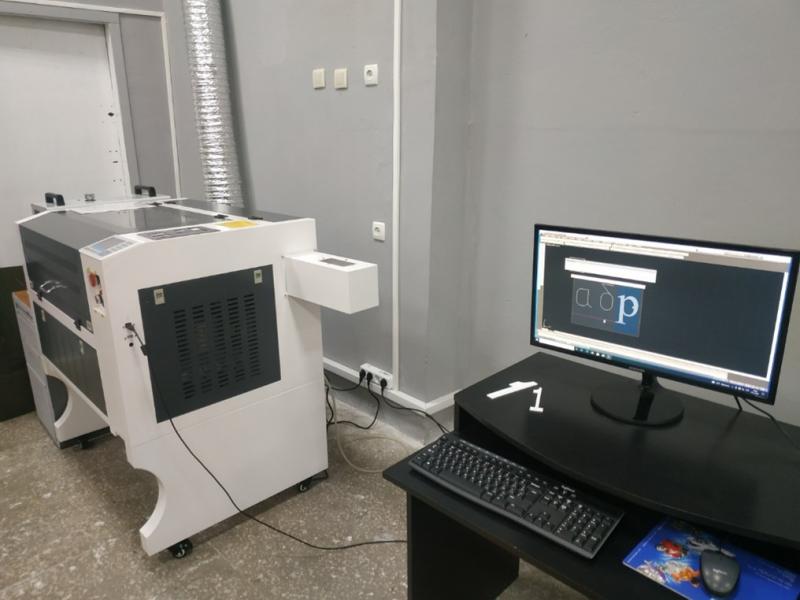

Laser engraving equipment Laser machine 6040 80W EFR F-2

Processing accuracy 0.01 mm; processing thickness 0 – 20; minimum icon size (1x1) mm; maximum engraving speed 70 m/min; maximum cutting speed 40 m/min; CO2 laser type; water cooling; protection system; voltage 220V; laser power, 130W; total power 1.3 kW. The possibility of processing gypsum, ceramics, aluminum, etc.
